Dimensions & Dry Mass

Overall Length (mm/inch)

1680/56

Overall Width (mm/inch)

1320/52

Overall Height (mm/inch)

880/35

Dry Mass (kg/lbs)

296/651

Cuttingdevice:

Width of cut (mm)

1200

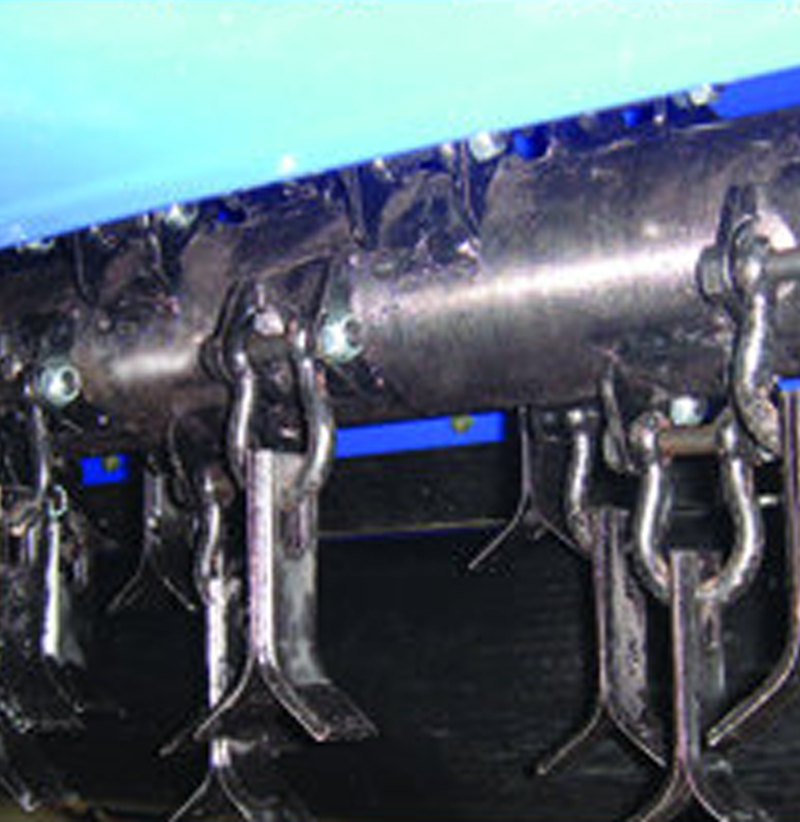

Cutting flails (pcs)

96

Engine :

Type

OHV, Tilt, Single cylinder, 4 stroke, Forced air cooling,  gasoline engine

Bore×Stroke (mm)

90×46

Displacement (cm3)

420

Rated Power (kw/r/min)

8.5/3600

Max Power  (kw/r/min)

11.7/4000

Rated Torque(N.m/min)

26/2800

Fuel Consumption(g/kwxh)

370

Oil Consumption(g/kwxh)

≤6.8

Fuel/Lub.oil

90# Gasoline/SAE10W-30

Compression Ratio

8.1

Valve Clearance(mm)

Input Valve 0.10 Output Valve0.15

Spark Plug

BPR6ES (NGK) F7RTC (CHINA)

Spark Plug Clearance

0.6-0.8mm

Ignition Model

T.C.I

Starting System

Electric/Recoil Starter

Lubrication Model

Splashing

Oil capacity

1.1

Tires:

Retractable wheels

180/400-8

Capacities

Fuel Tank (L)

6

Quantity per container

66units/40’ HC
