    KD50S3
    • E-mail: sales@kinder-atv.com

    • Follow us:
    • Brief Introduction:

      50CC 4 Stroke,CVT automatic, Fan cooling
      Operation over age 6

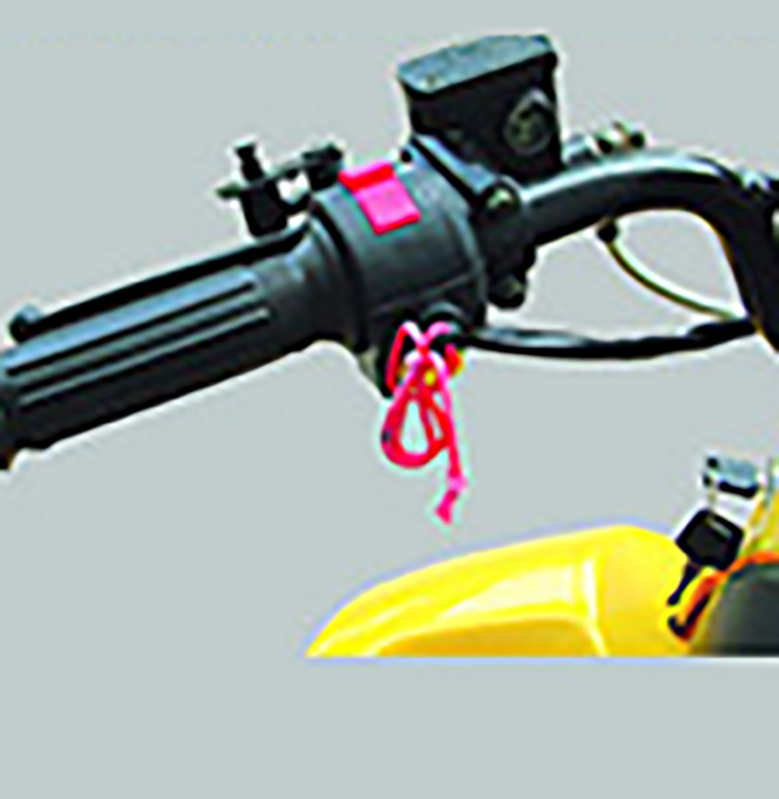

      Front safety switch and optional remote “off”switch
      Independent Double A-arm
      Front drum Brakes and rear hydraulic disc brake by hand

    • Inquiry Now
      • KD50S3
      • KD50S3
      • KD50S3
      • KD50S3
    Product Details

    50CC 4 Stroke,CVT automatic, Fan cooling

    Operation over age 6

    Front safety switch and optional remote “off”switch

    Independent Double A-arm

    Front drum Brakes and rear hydraulic disc brake by hand


    MODEL

    KD50S3

    Dimensions & Dry Mass

    Overall Length (mm/inch)

    1240/48.8

    Overall Width (mm/inch)

    630/24.8

    Overall Height (mm/inch)

    800/31.5

    Axle Base (mm/inch)

    775/30.5

    Ground Clearance (mm/inch)

    85/3.35

    Seat Height (mm/inch)

    530/20.8

    Dry Mass (kg/lbs)

    60/132

    Available color

    Red ,Blue ,Yellow,Black

    Engine :

    Type

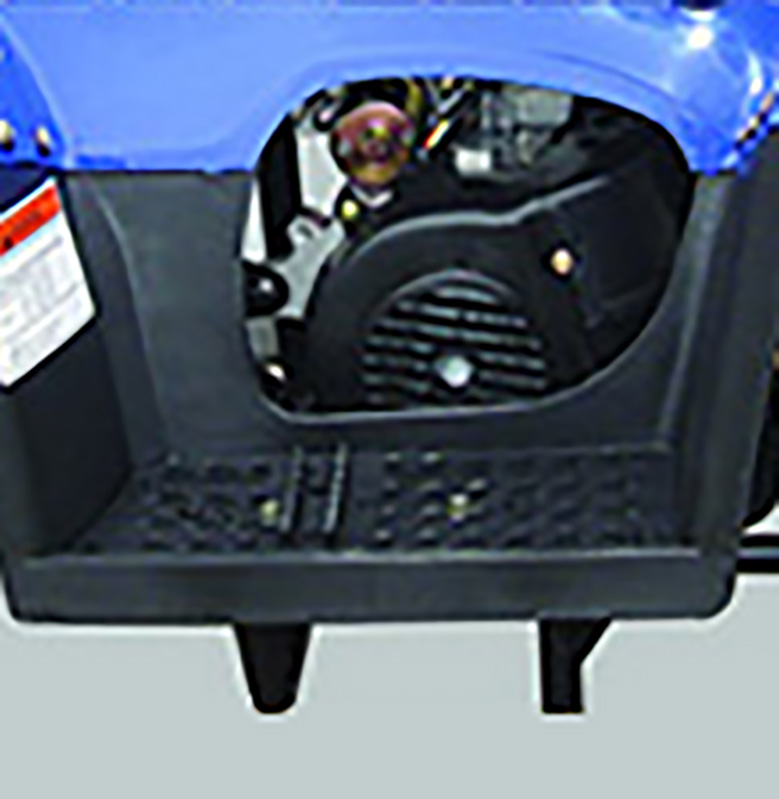

    One cylinder, 4 stroke, fan cooling,

    Bore×Stroke (mm)

    39×41.5

    Displacement (cm3)

    49.6

    Compression Ratio

    10.5∶1

    Starting System

    Electric

    Max Power (kw/rpm)

    2.8/7500

    Max Power  (Nm/rpm)

    3.8/5500

    Ignition System

    CDI

    Battery

    12V4AH

    Transmission

    Transmission

    CVT  Automatic

    Final Drive

    Chain Drive

    Chassis

    Front Suspension

    Independent Double A-arm

    Rear Suspension

    Unit-swing suspension

    Front Brake

    Twin Drum brake, by hand

    Rear Brake

    Hydeaulic disc Brake, by hand

    Front tire size

    145/70-6

    Rear tire size

    145/70-6

    Lights and rack

    Head and tail/brake lights

    Others

    With remote “off”switch(option)

    Capacities

    Fuel Tank (L/gal)

    2/0.45

    Transmission (ml/quart)

    100/1

    Quantity per container

    136units/40’ HC
