125CC 4 Stroke,CVT automatic, Fan cooling
Operation over age 16
Front safety switch
Independent single A-arm
Drum Brakes by han

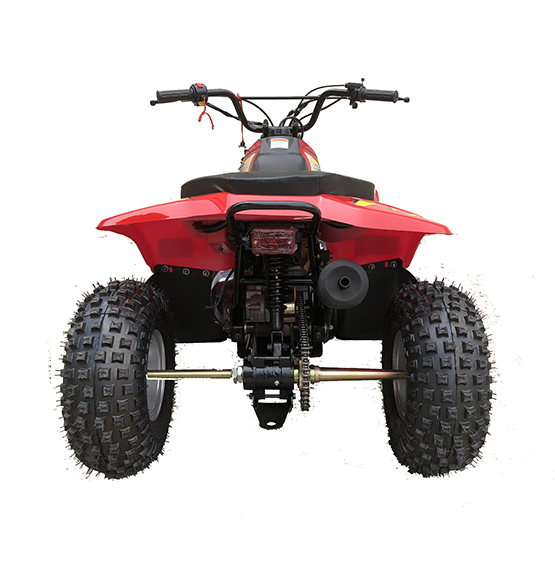

MODEL | KD125D |
Dimensions & Dry Mass | |
Overall Length (mm/inch) | 1450/57 |
Overall Width (mm/inch) | 810/32.2 |
Overall Height (mm/inch) | 830/32.6 |
Axle Base (mm/inch) | 900/35.3 |
Ground Clearance (mm/inch) | 100/3.9 |
Seat Height (mm/inch) | 630/24.8 |
Dry Mass (kg/lbs) | 100/220 |
Available color | Red ,Blue ,Yellow,Black |
Engine : | |

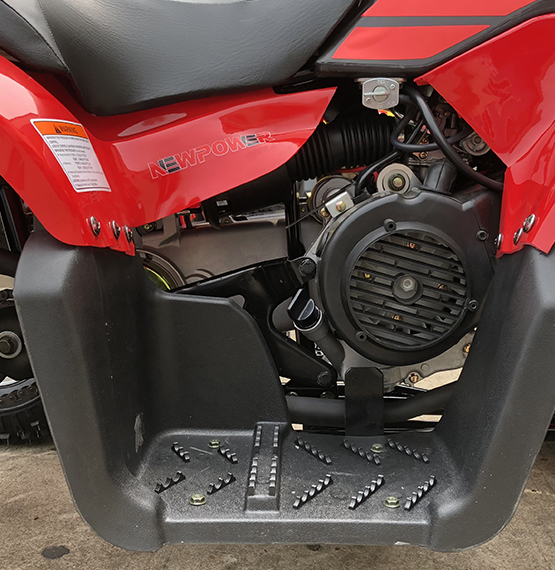

Type | One cylinder, 4 stroke, fan cooling, |
Bore×Stroke (mm) | 52.4×57.8 |
Displacement (cm3) | 124.6 |
Compression Ratio | 9.2∶1 |
Starting System | El/kick |
Max Power (kw/rpm) | 6.2/7000 |
Max Power (Nm/rpm) | 7.6/4500 |
Ignition System | CDI |
Battery | 12V7AH |
Transmission | |
Transmission | CVT Automatic |

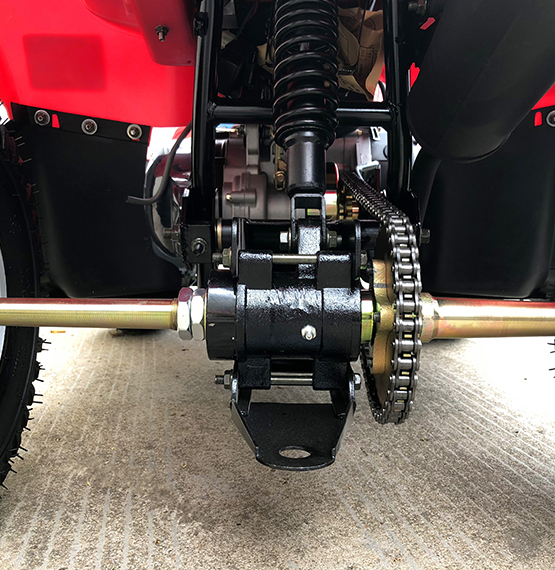

Final Drive | Chain Drive |
Chassis | |

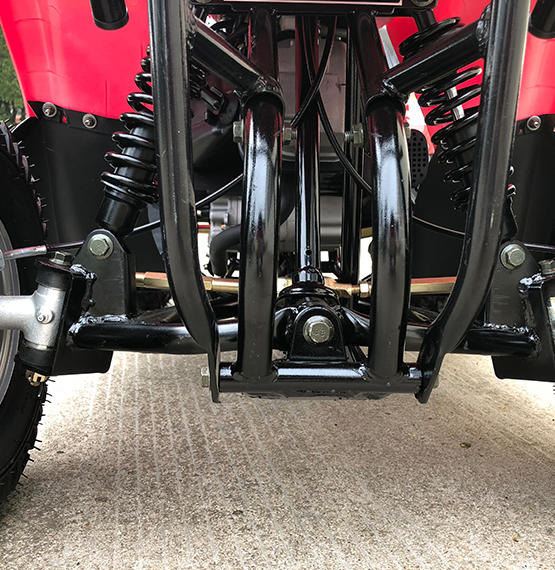

Front Suspension | Independent single A-arm |
Rear Suspension | Unit-swing suspension |
Front Brake | Drum brake, by hand |
Rear Brake | Drum brake, by hand |
Front tire size | 16×8-7 |
Rear tire size | 16×8-7 |
Capacities | |
Fuel Tank (L/gal) | 6.8/1.8 |
Transmission (ml/quart) | 100/1 |
Quantity per container | 97units/40’ HC |
