Dimensions & Dry Mass

Overall Length (mm/inch)

1060/42.4

Overall Width (mm/inch)

640/25.6

Overall Height (mm/inch)

750/30

Axle Base (mm/inch)

755/30.2

Ground Clearance (mm/inch)

80/3.15

Seat Height (mm/inch)

500/20

Dry Mass (kg/lbs)

50/110

Max Loading(kg/lbs)

50/110

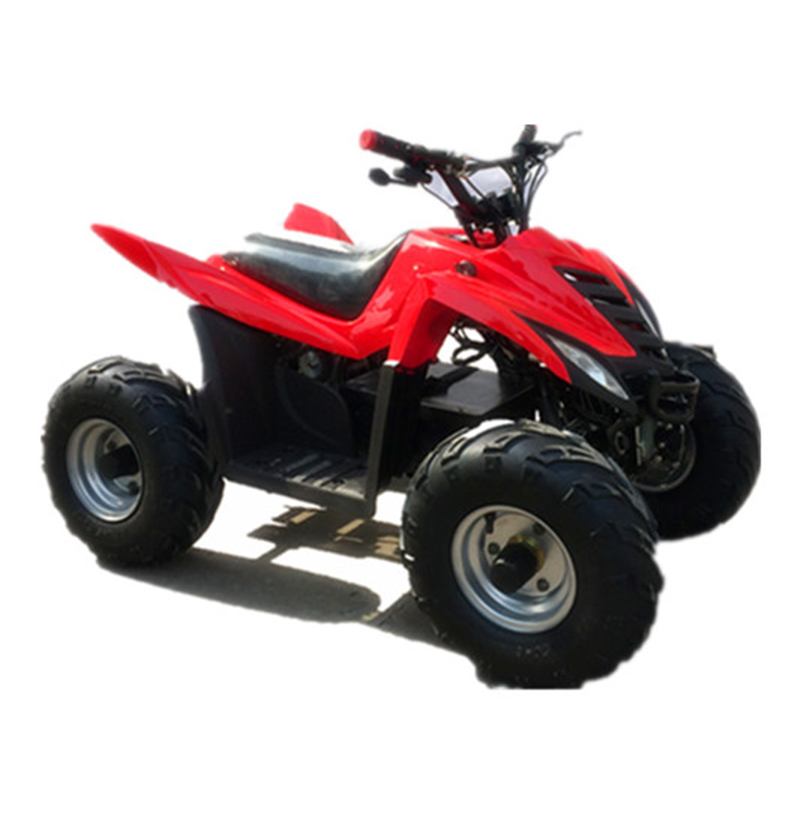

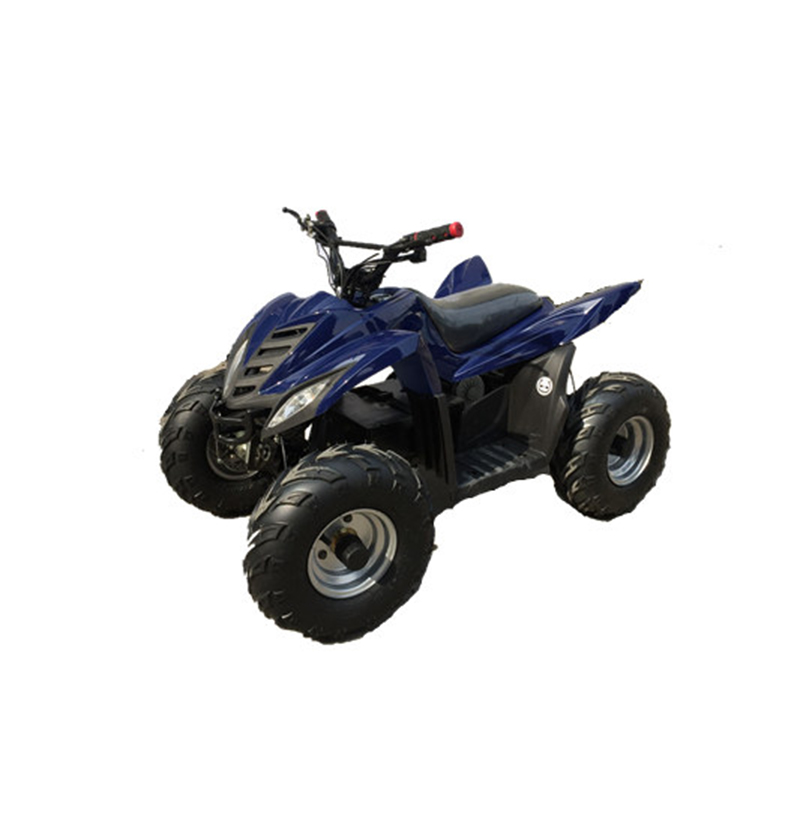

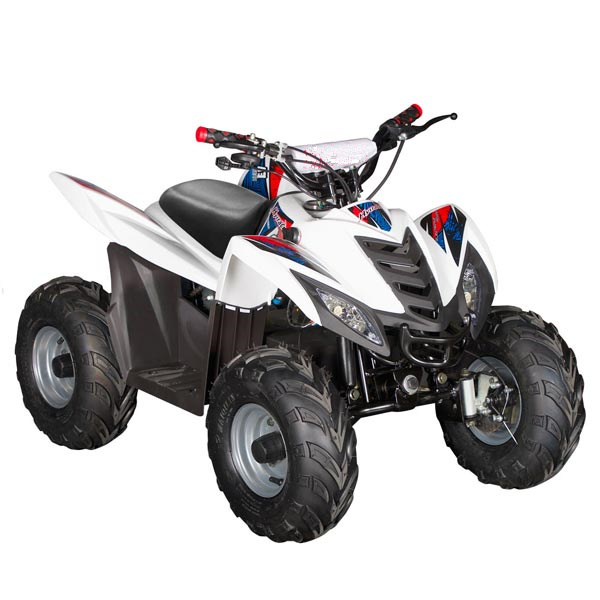

Available color

Red ,Blue ,White

Electric :

Motor Type

PMDC motor

Rated Voltage (V)

36

Rated Power (W)

350

Rated Current（A）

8

Rated Speed（RPM）

3200

Rated Torque（N.m）

1.11

Motor Controller(W/V)

350/36

Battery

36V/12AH

Single Battery Size(mm)

151×101×94  (3 pcs)

Single Battery Mass(kg/lbs)

4.25/9.35       (3 pcs)

Charger Input

220V/50Hz

Charger Output

36V/12A

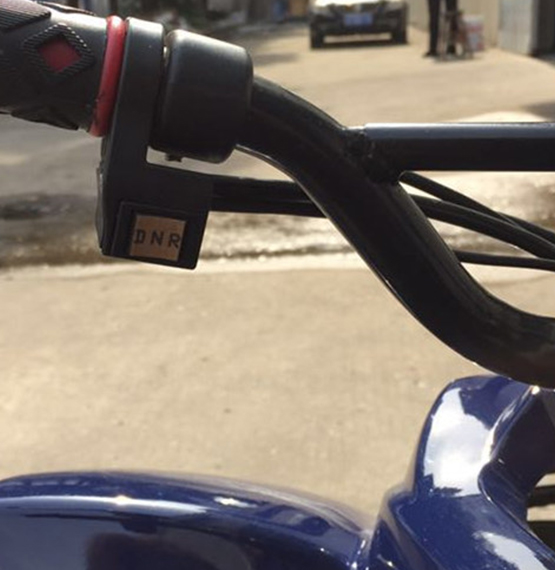

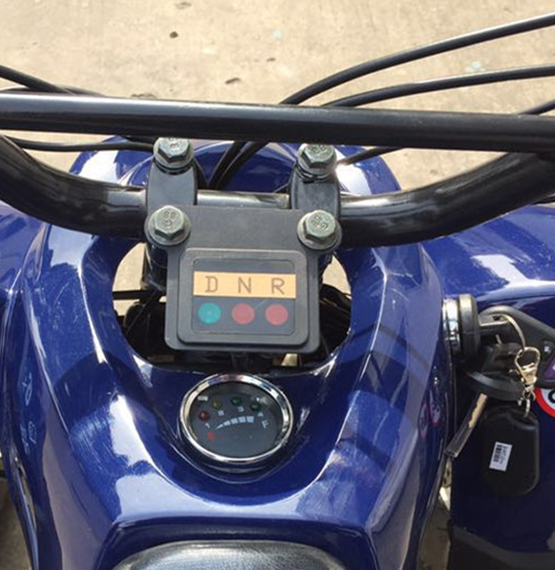

Switch

With remote “off” switch

Transmission

Transmission

Resistance reduction

Final Drive

Chain drive with reverse

Chassis

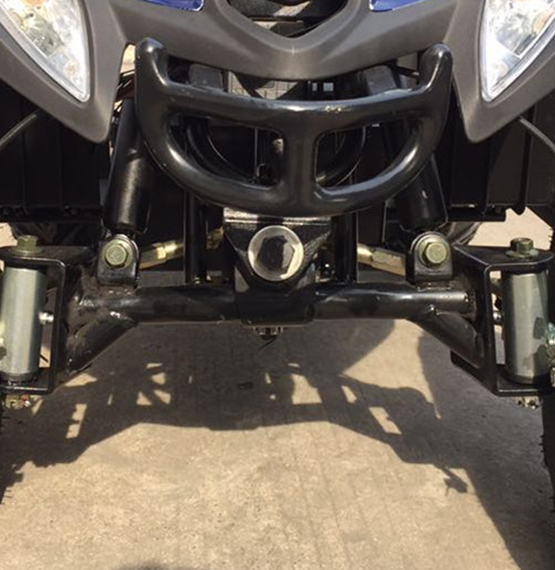

Front Suspension

Swing rocker arm

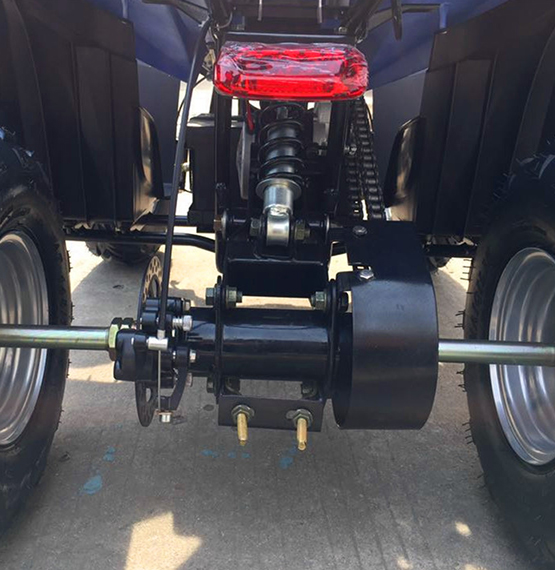

Rear Suspension

Unit-swing suspension

Front Brake

Twin Mechanical disc brake, by hand

Rear Brake

Mechanical disc brake, by hand

Front tire

145/70-6

Rear tire

145/70-6

Other

Speed(Km/h)

10/2

Per Charge Mileage(Km)

15

Packing

160units /40’HC
