Dimensions & Dry Mass

Overall Length (mm/inch)

1240/48.8

Overall Width (mm/inch)

630/24.8

Overall Height (mm/inch)

800/31.5

Axle Base (mm/inch)

775/30.5

Ground Clearance (mm/inch)

85/3.35

Seat Height (mm/inch)

530/20.8

Dry Mass (kg/lbs)

60/132

Max Loading(kg/lbs)

50/110

Available color

Red ,Blue ,White

Electric :

Motor Type

PMDC motor

Rated Voltage (V)

48

Rated Power (W)

500

Rated Current（A）

13.5

Rated Speed（RPM）

2800

Rated Torque（N.m）

1.7

Motor Controller(W/V)

500/48

Battery

48V/12AH

Single Battery Size(mm)

151×101×94

Single Battery Mass(kg/lbs)

4.25/9.35

Charger Input

220V/50Hz

Charger Output

48V/12A

Switch

With remote “off” switch

Transmission

Transmission

Resistance reduction

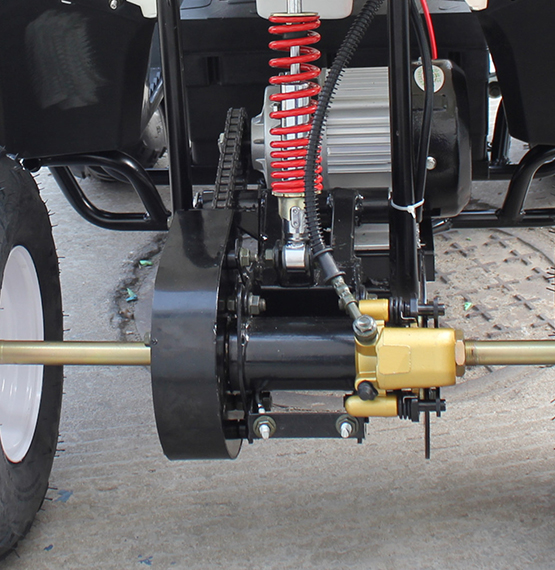

Final Drive

Chain drive with reverse

Chassis

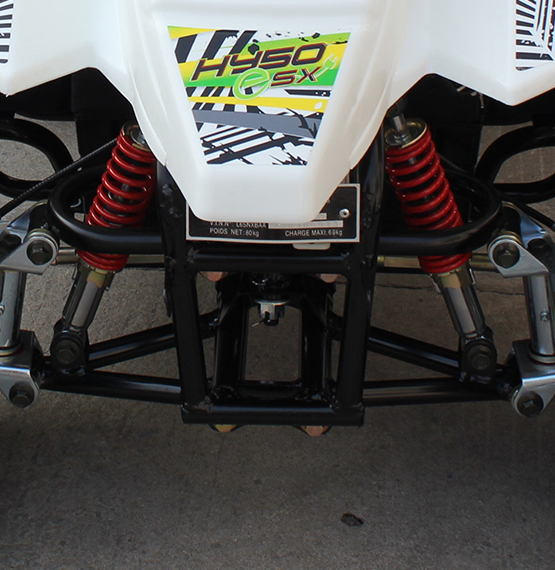

Front Suspension

Independent Double A-arms

Rear Suspension

Unit-swing suspension

Front Brake

Null

Rear Brake

Hydraulic disc brake, by hand

Front tire

145/70-6

Rear tire

145/70-6

Other

Speed(Km/h)

15±2

Per Charge Mileage(Km)

35±5

Packing

136units /40’HC
