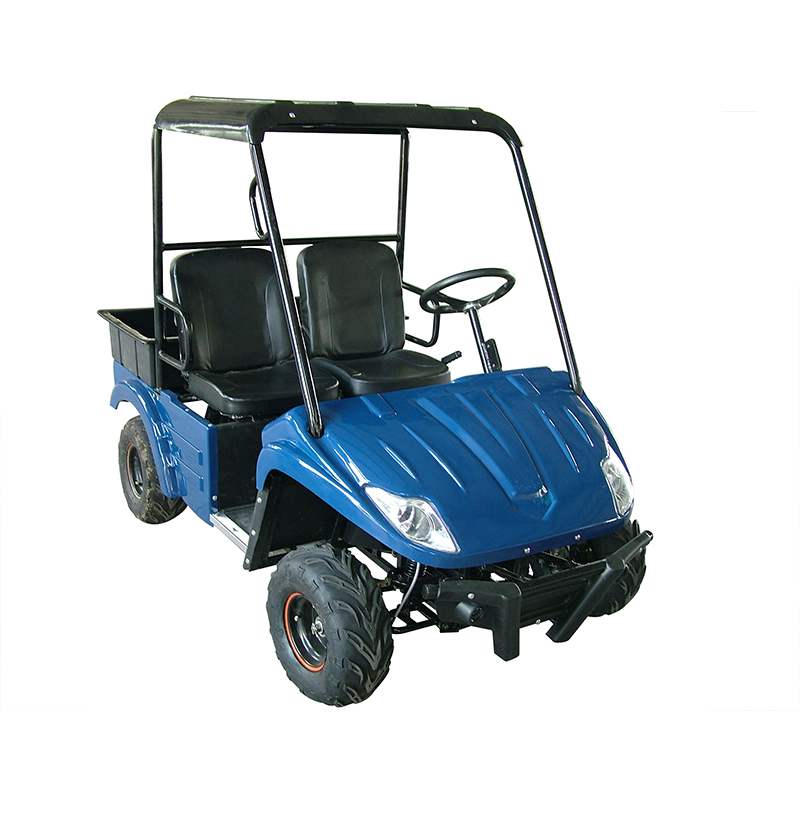

    KD150U
    • E-mail: sales@kinder-atv.com

    • Follow us:
    • Brief Introduction:

      150CC 4 Stroke,CVT automatic, Fan cooling with reverse
      Operation over age 16
      Front Independent double A-arms
      Front/Rear dual hydraulic disc brakes, by foot
      Big tool box

    • Inquiry Now
      • KD150U
      • KD150U
      • KD150U
      • KD150U
      • KD150U
    Product Details

    150CC 4 Stroke,CVT automatic, Fan cooling with reverse

    Operation over age 16

    Front Independent double A-arms

    Front/Rear dual hydraulic disc brakes, by foot

    Big tool box


    MODEL

     KD150U

    Dimensions & Dry Mass

    Overall Length (mm/inch)

    2050/80.7

    Overall Width (mm/inch)

    1090/42.9

    Overall Height (mm/inch)

    1530/60.2

    Axle Base (mm/inch)

    1290/50.8

    Ground Clearance (mm/inch)

    70/2.8

    Seat Height (mm/inch)

    350/13.8

    Dry Mass (kg/lbs)

    180/396

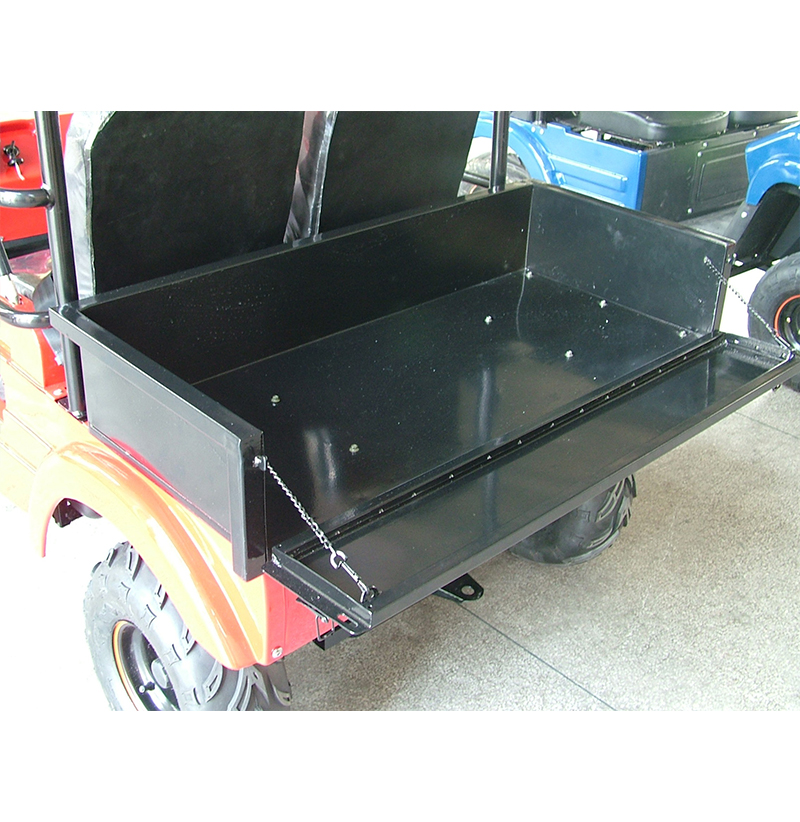

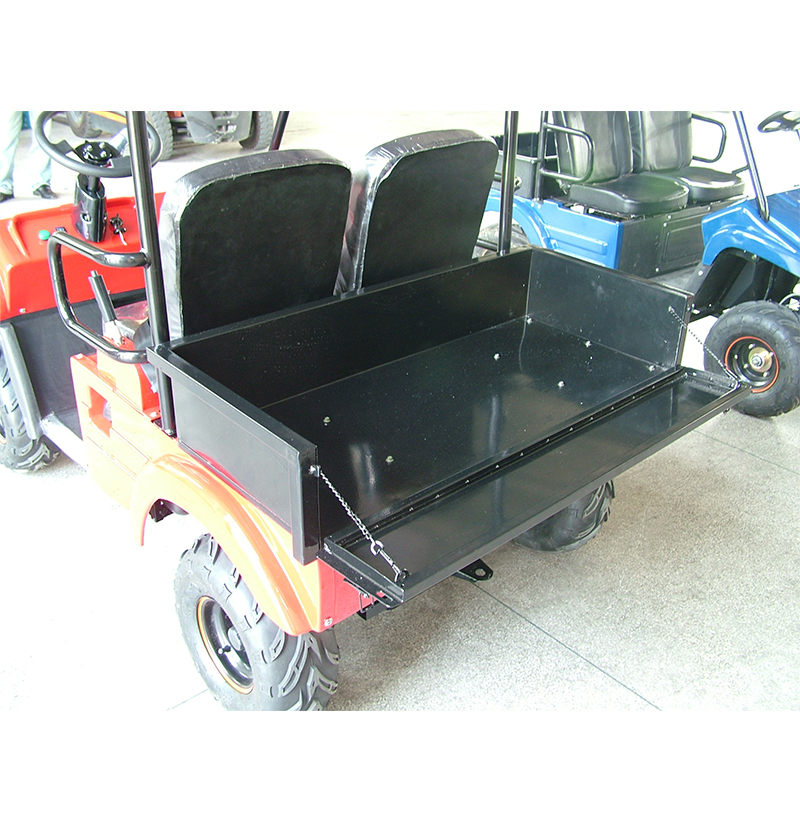

    Cargo Bed Dimension(mm)

    420×970×175

    Max Loading(kg/lbs)

    150/300

    Engine :

    Type

    One cylinder, 4 stroke, fan cooling,CVT Automatic with reverse

    Bore×Stroke (mm)

    57.4×57.8

    Displacement (cm3)

    149.6

    Compression Ratio

    9.2∶1

    Starting System

    El/kick

    Max Power (kw/rpm)

    7.0/7500

    Max Power  (Nm/rpm)

    10.5/5500

    Ignition System

    CDI

    Battery

    12V7AH

    Transmission

    Transmission

    CVT  Automatic  with reverse

    Final Drive

    Chain Drive

    Chassis

    Front Suspension

    Independent shocks, Double A-arms

    Rear Suspension

    Unit-swing suspension

    Front Brake

    Dual hydraulic disc brakes, by foot

    Rear Brake

    Dual hydraulic disc brakes, by foot

    Front tire size

    19×7-8

    Rear tire size

    18×9.5-8

    Capacities

    Fuel Tank (L/gal)

    6.8/1.7

    Transmission (ml/quart)

    100/1
