Dimensions & Dry Mass

Overall Length (mm/inch)

2880/113.4

Overall Width (mm/inch)

1470/57.9

Overall Height (mm/inch)

1950/76.8

Axle Base (mm/inch)

1900/74.8

Ground Clearance (mm/inch)

210/8.3

Seat Height (mm/inch)

460/18.2

Dry Mass (kg/lbs)

550/1210

Minimum turing Radius(mm/ft)

3900/13

Cargo Bed Dimension(mm)

1005×1405×335

Hitch Towing Capacity(kg/lbs)

546/1200

Max. speed(km/h)

70

Engine :

Type

Liquid-cooled 4 stroke, SOHC

Carburetor

MIKUNI BSR36-89

Bore×Stroke (mm)

87.5×82

Displacement (cm3)

493

Compression Ratio

10.2∶1

Starting System

Electric and recoil starter

Max Power (kw/rpm)

24/7000

Max Power  (Nm/rpm)

36/5500

Ignition System

CDI

Battery

12V18AH

Transmission

Transmission

CVT  Automatic  L/H/N/R Transmisson

Final Drive

Shafe,selectable four-wheel drive with dual-model differential

Chassis

Front Suspension

Independent shocks, Double A-arms

Rear Suspension

Independent shocks, Double wishbone

Front Brake

Dual hydraulic disc brakes, by foot

Rear Brake

Dual hydraulic disc brakes, by foot

Front tire size

25×8-12

Rear tire size

25×10-12

Others

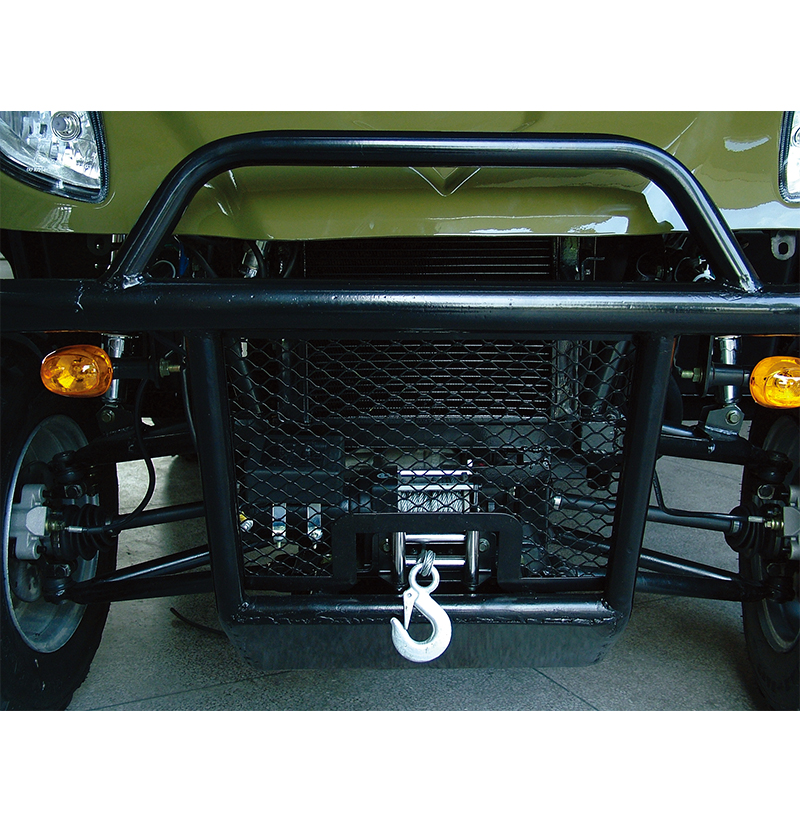

Parking brake warning light,coolant temperature warning light, horn,taillight, brake light, sealed-beam headlight,ATV winch

Opitional

Windshield, Aluminium rim

Capacities

Fuel Tank (L/gal)

40/10.6

Transmission (L)

2.2L
